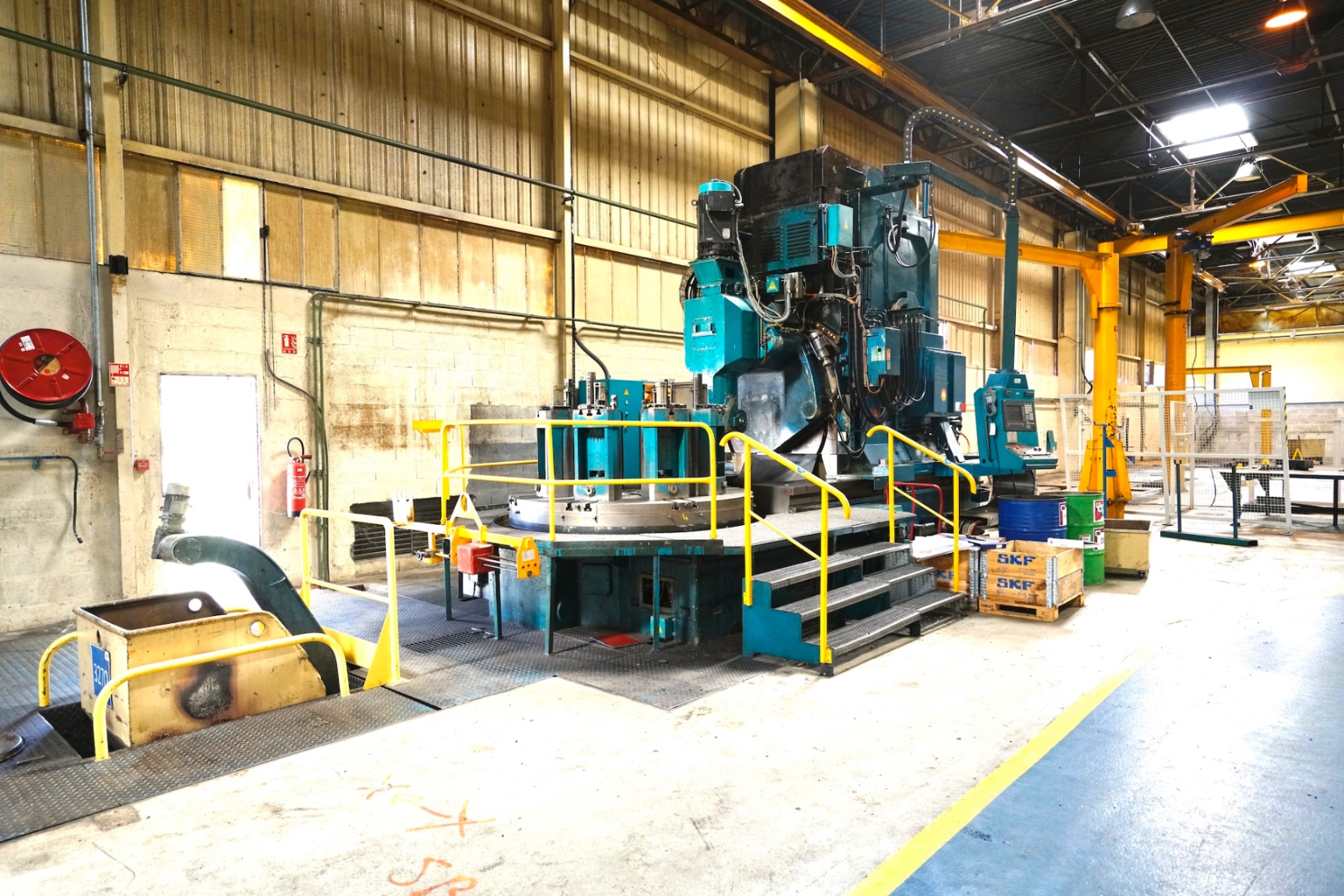

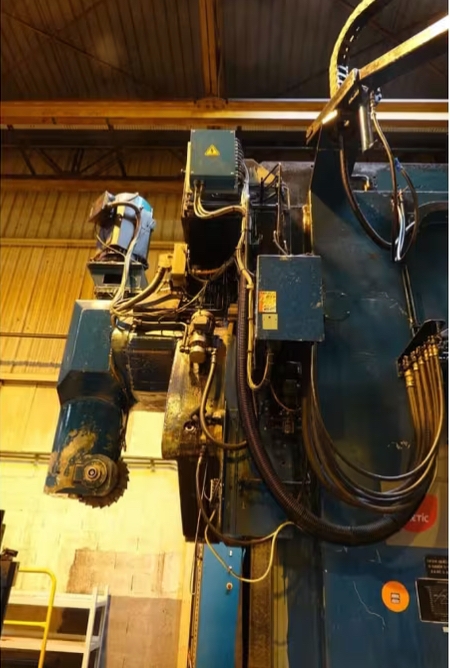

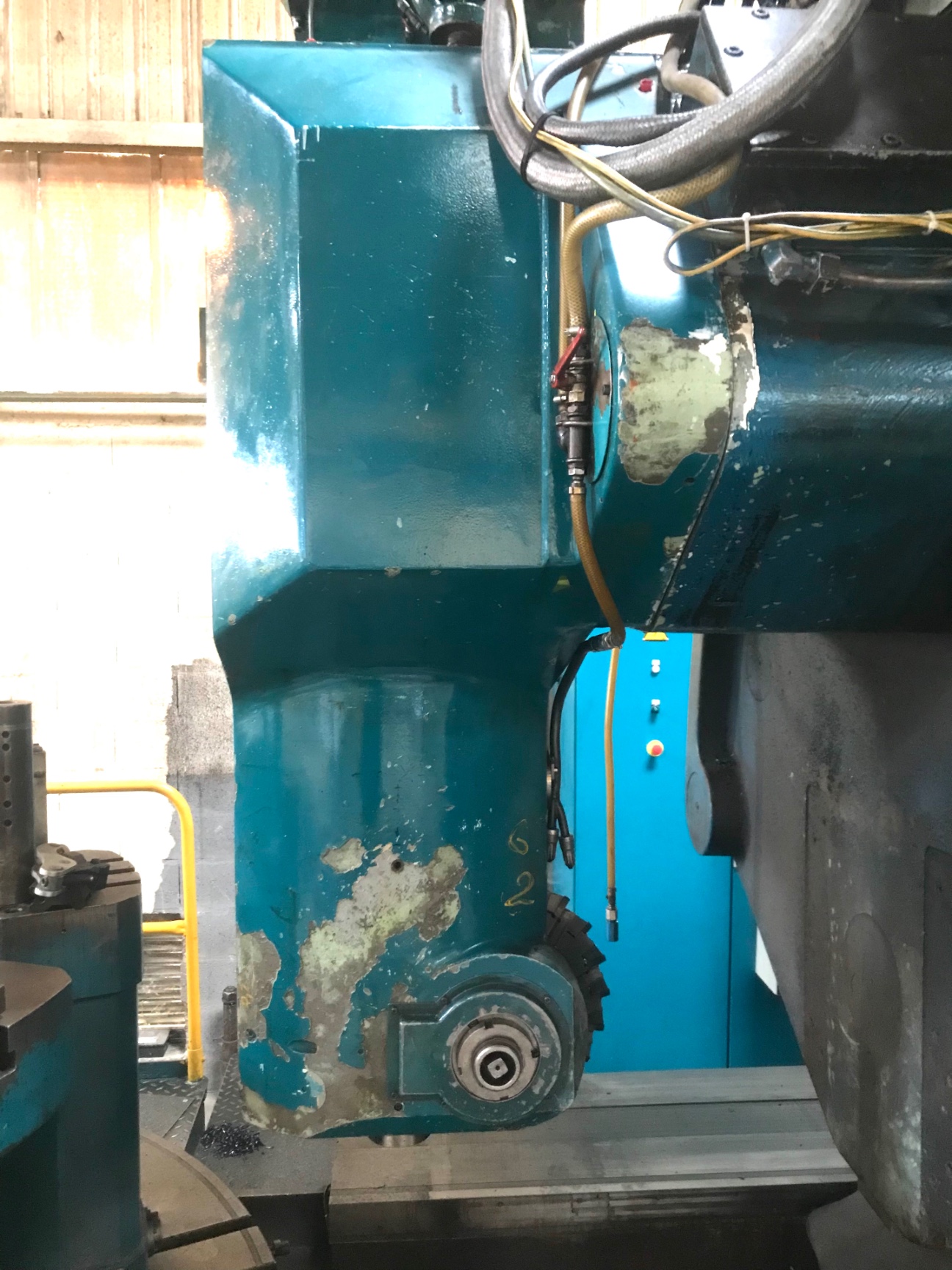

SCHIESS RFH 30 CNC Internal Gear Hobber
Technical Specifications
| Max gear diameter | 3.150 mm |
|---|---|
| Min Internal gear diameter | 630 mm |
| Max vertical stroke | 1.200 mm |
| Table diameter | 2.200 mm |
| Min number of teeth | 15 |
| Max number of teeth | 750 |
| Table load | 30 ton |
| Table speed | 0,03 - 2,4 rpm |
| Milling motor | 45 kW |
| Max milling speed | 200 rpm |
| Max distance milling spindle centre to table | 1.750 mm |
| Min distance milling spindle centre to table | 550 mm |
| Column travel, X | 1.350 mm |
| Milling carriage vertical travel, Z | 1.200 mm |
Gallery
Machine Details
Built 1982, New CNC SIEMENS 840 D 2005.
Sold as new original CNC machine 1987.
Min internal gear diameter 630 mm.
Max Gear diameter 3.150 mm.
With 6 milling discs.
