LIEBHERR L3002 CNC Gear Hobber
Technical Specifications
| Max gear diameter | 3.000 mm |
|---|---|
| Max Gear width | 1.000 mm |
| Max Helical Angle | 45° |
| Table diameter | 2.000 mm |
| Table Bore Diameter | 600 mm |
| Table load | 25 ton |
| Distance Cutter Center Table Center | 200 - 2.200 mm |
| Hob Diameter | 400 mm |
| Cutter Length Max | 600 mm |
| Hob turning | 25 - 150 rpm |
| Internal Head Motor | 44 / 50 Kw |
| Min Internal Diameter | 980 mm |
| Max Internal Diameter | 2.200 mm mm |
| External Head Motor | 44 / 50 kW |
| Min External Diameter | 950 mm |
| Max External Diameter | 2.800 mm |
| Weigth of Machine ca | 50 Ton |
| Dimension of Machine ca | 7 x 4,5 x 4,75 m |
Gallery
Machine Details

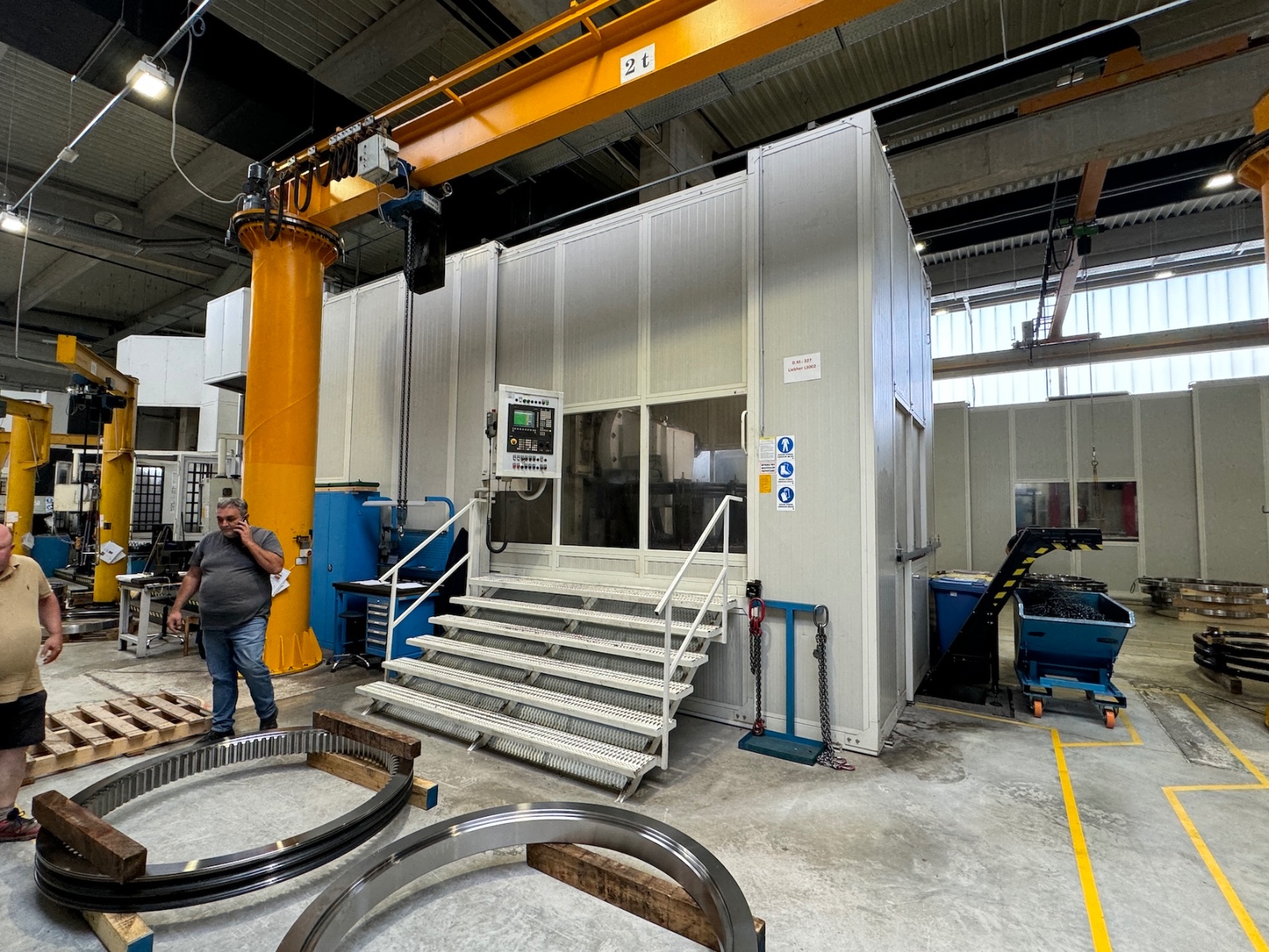

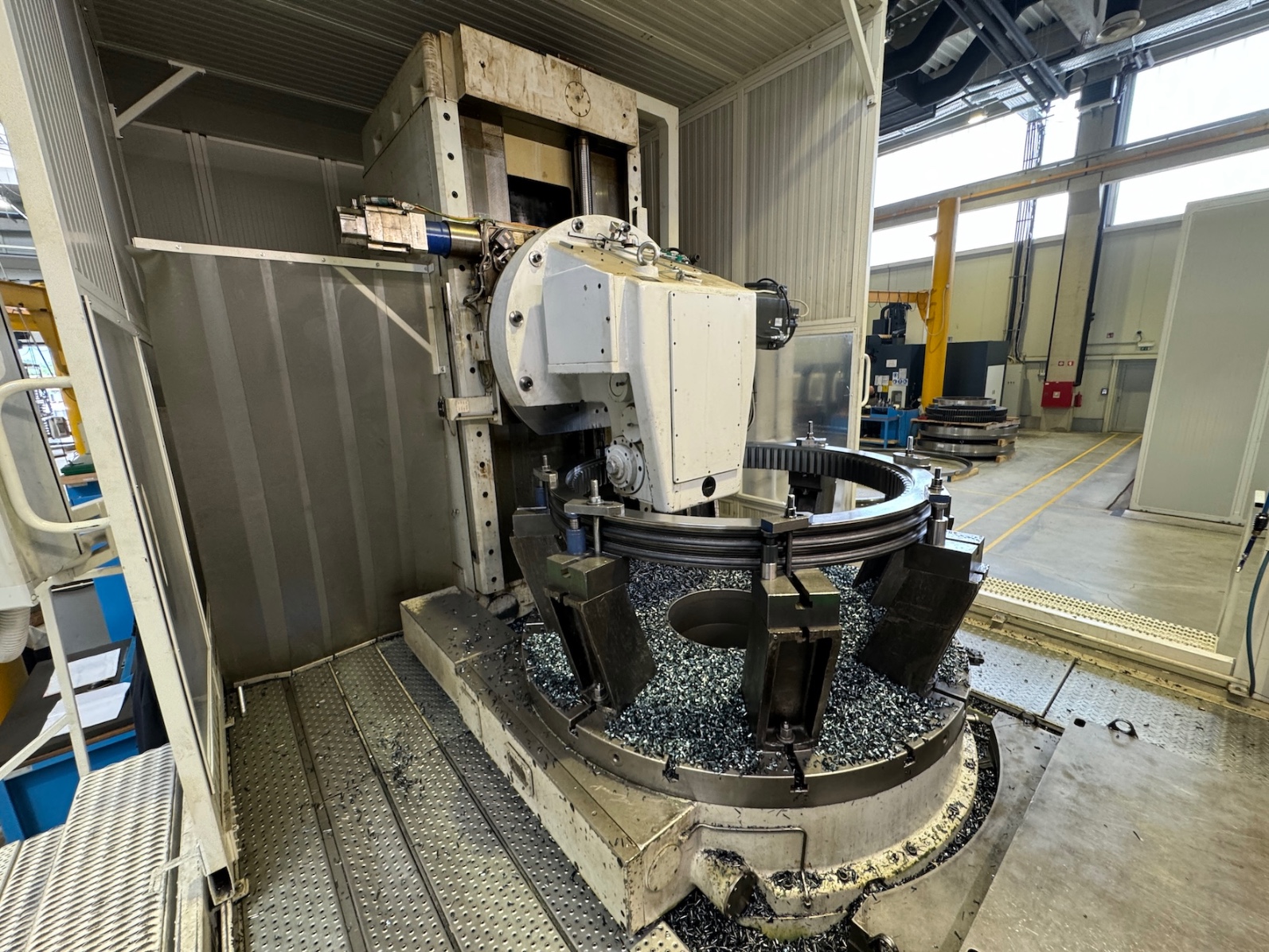

LIEBHERR L3002 CNC Internal and External Gear Hobber

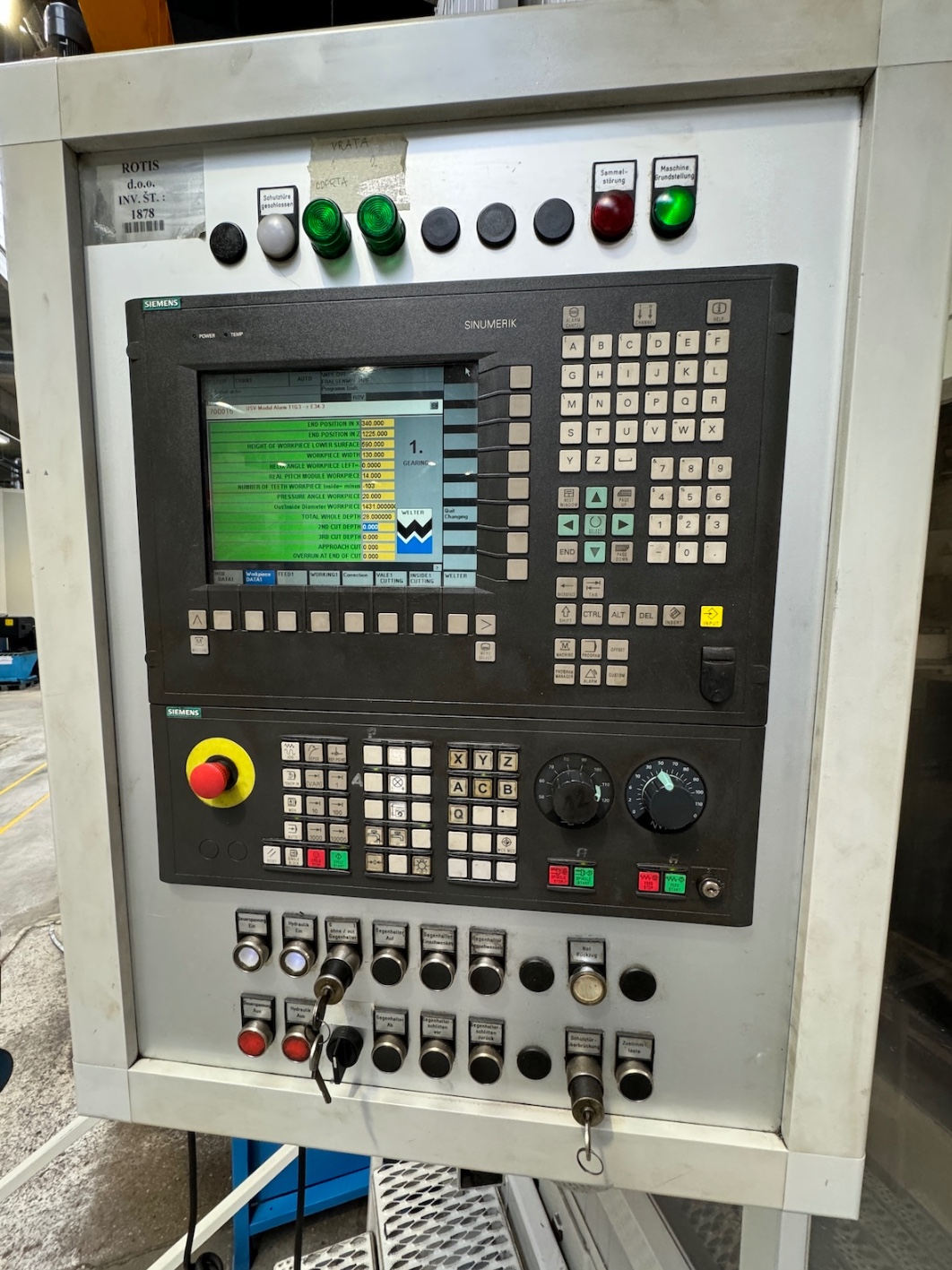

Built 1982, Modernized 2006 CNC SIEMENS 840 D.
Max Wheel diameter 3.000 mm.
Max helical Angle 45°
Internal and external Head. 44/50 kW.
