FPT CASTEL RED, 2007
Technical Specifications
| X Column travel | 3.100 mm |
|---|---|
| Y Headstock vertical travel | 2.000 mm |
| Z spindle stroke | 700 mm |
| W Column in spindle direction | 1.000 mm |
| Spindle diameter | 130 mm |
| Spindle diameter | ISO 50 |
| Spindle speed | 3000 rpm |
| Spindle motor | 37 kW |
| Rotary Table size | 1.800 x 2.000 mm |
| Table load | 12 ton |
| C-axes | 360 000° |

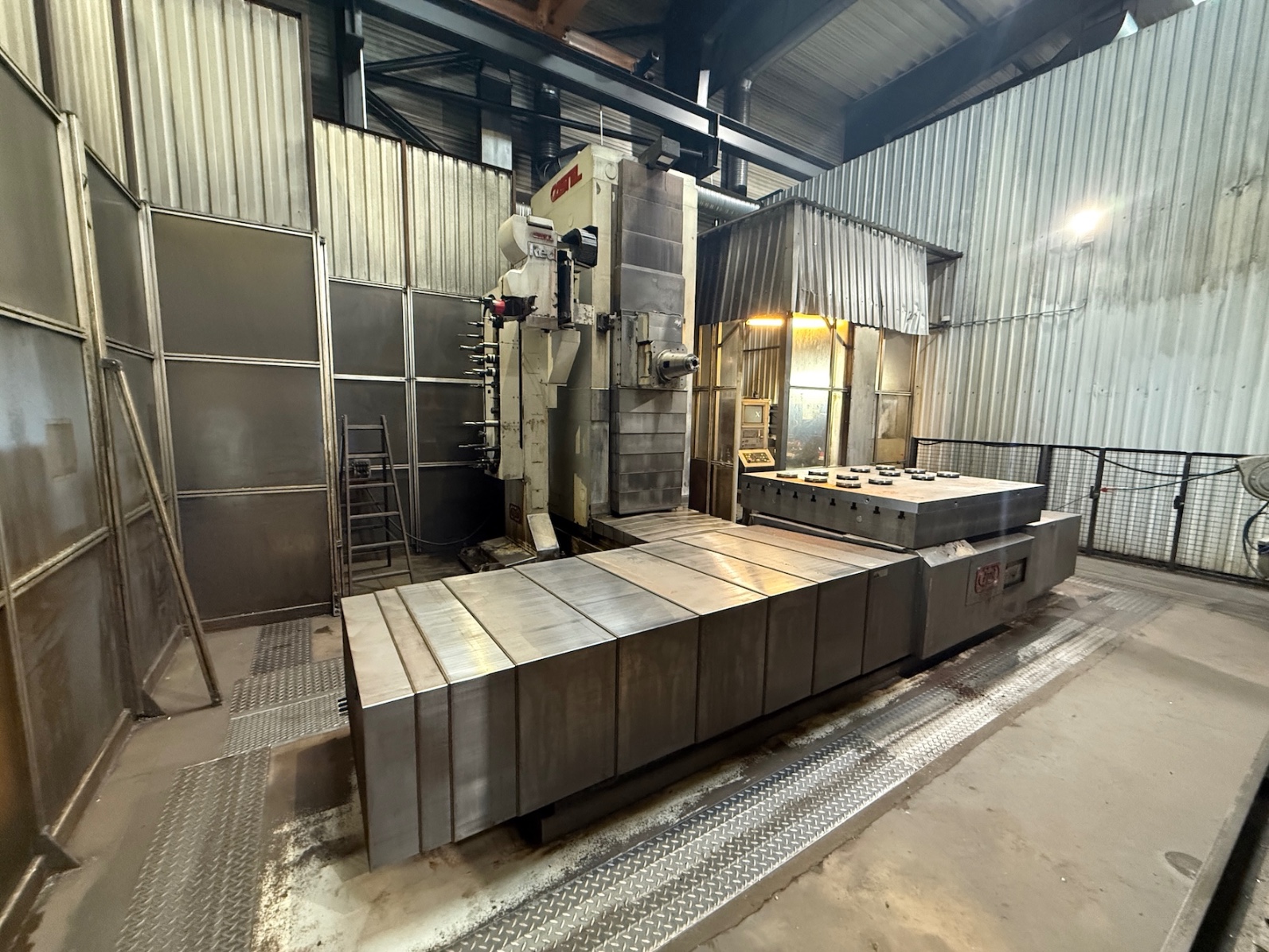

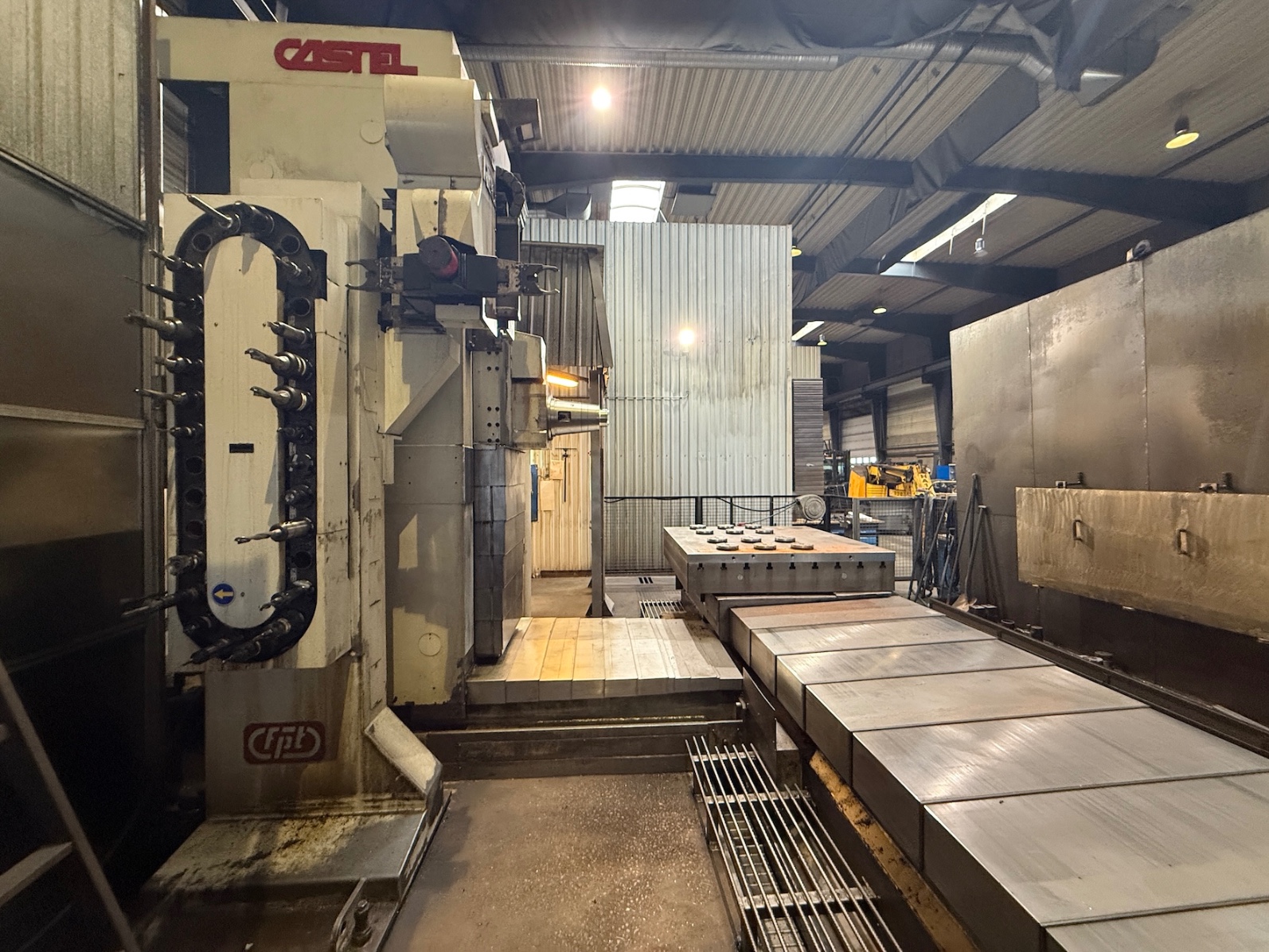

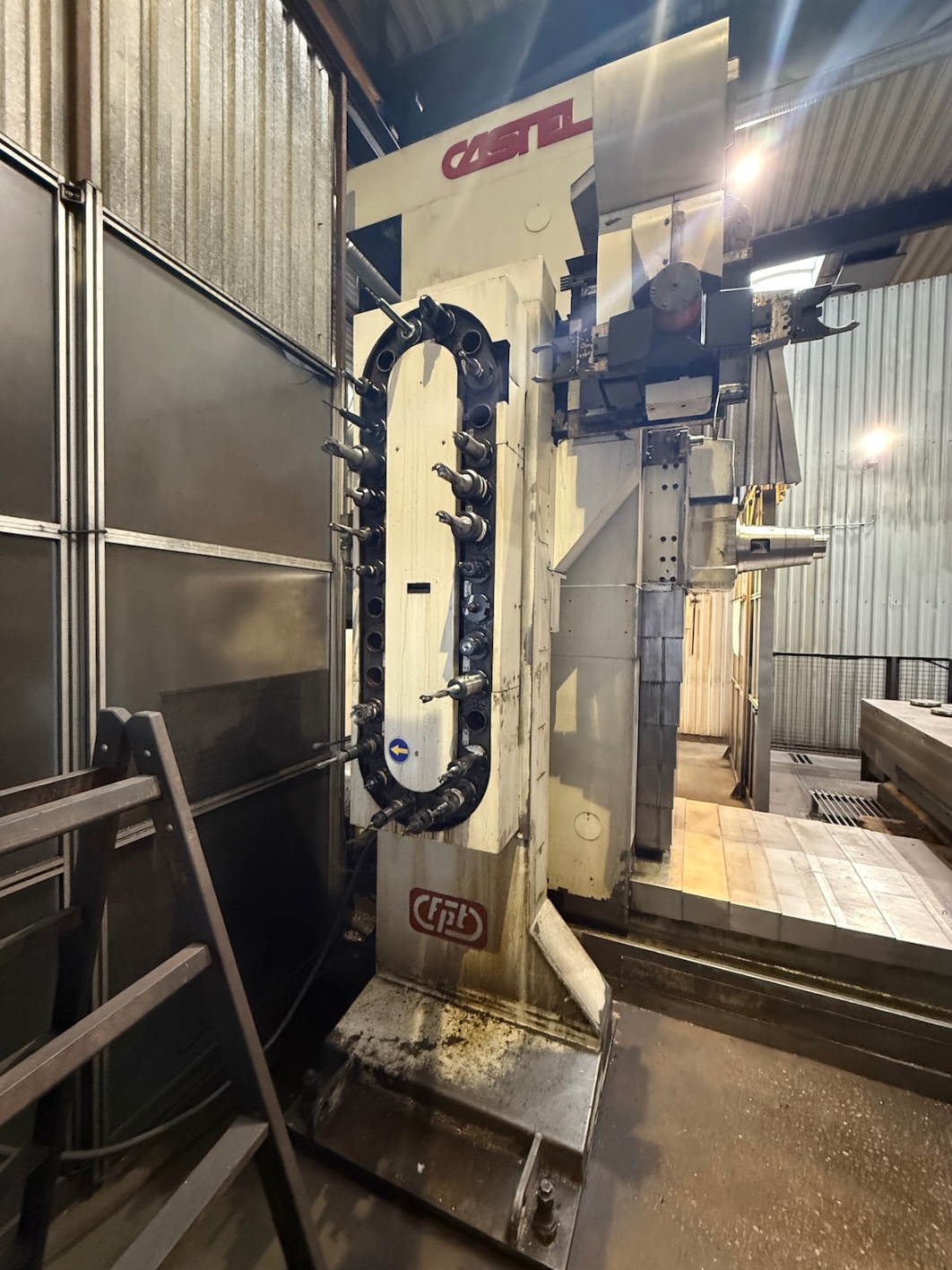

Gallery
Machine Details
HEIDENHEIN TNC 430.
Built 2007.
X=3100 mm
Y=2000 mm
Z=1000 mm
W, Spindle=700 mm
Table 2000 x 1800 mm, 12 Ton
Cooling through spindle.
