Technical Specifications
| X Column travel | 8.900 mm |
|---|---|
| Y Headstock vertical travel | 7.300 mm |
| Z, Ram stroke | 1.500 mm |
| W, spindle stroke | 1.000 mm |
| W+Z | 2.500 mm |

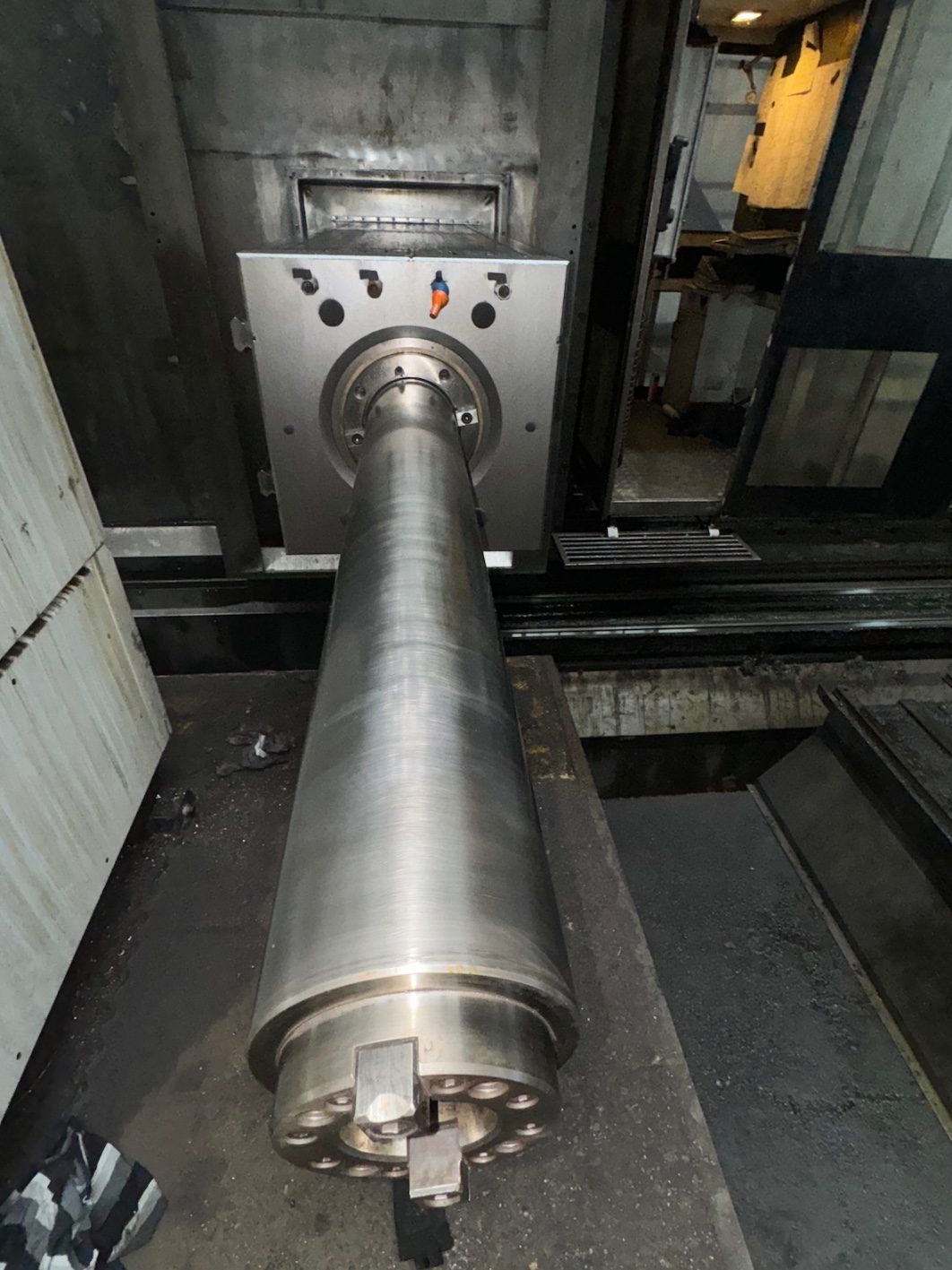

| Spindle diameter | 160 mm |
| Spindle diameter | ISO 50 |
| Spindle speed | 10 - 2.500 rpm |
| Spindle motor, 2 steps, ZF | 60 kW |
| Ram square section | 520 x 520 mm |
| Automatic robot tool changer | 90 Tools |
| Coolant through spindle | 50 Bars |
| Outside Coolant | 4 Bars |

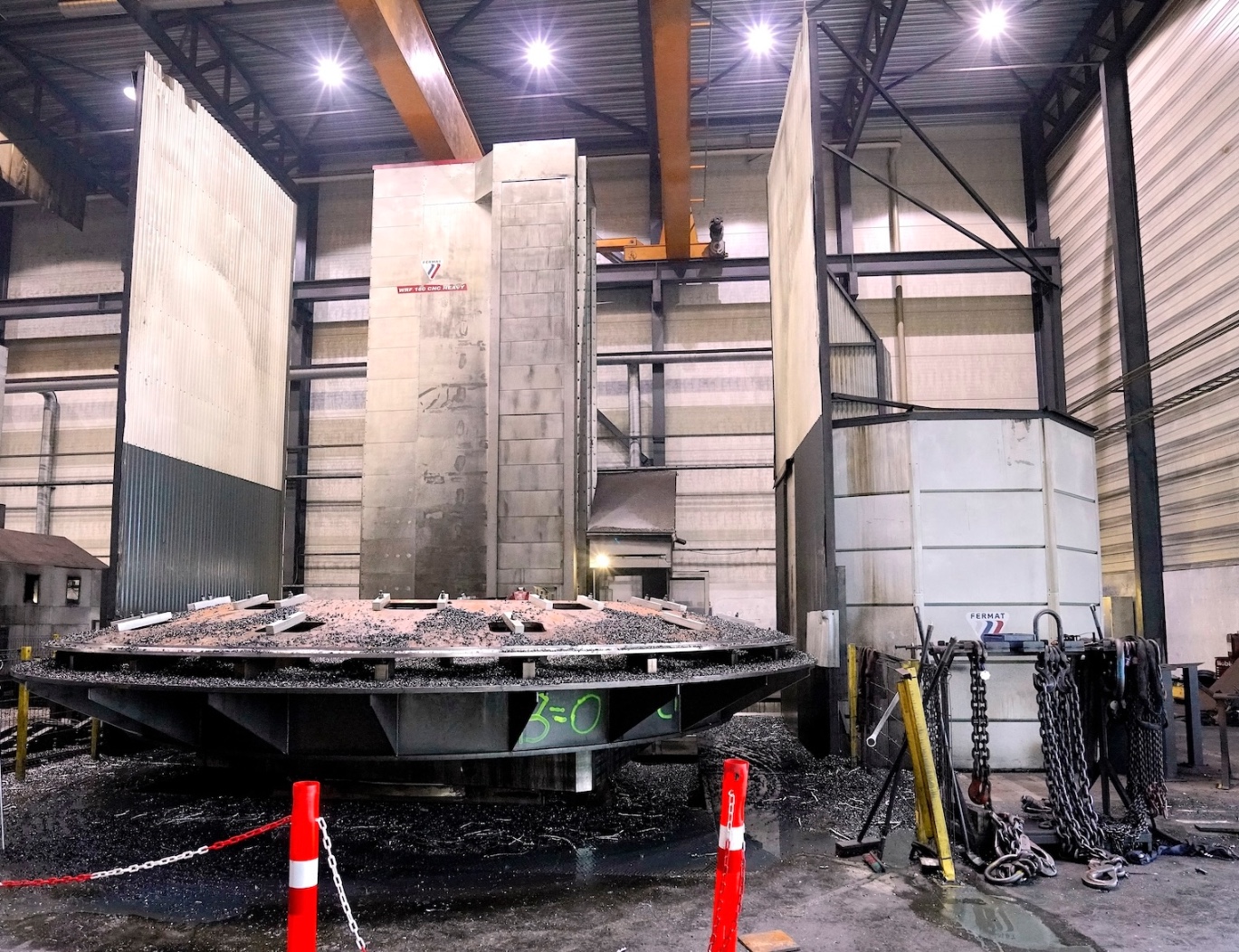

| Rotary Table size | 4.000 x 3.000 mm |
| Table load | 80 ton |
| C-axes | 360 000° |
| Table travel, V | 3.000 mm |
Gallery
Machine Details
CNC HEIDENHEIN iTNC 530. Built 2013.
Robot ATC 90, Pickup station 4 positions.

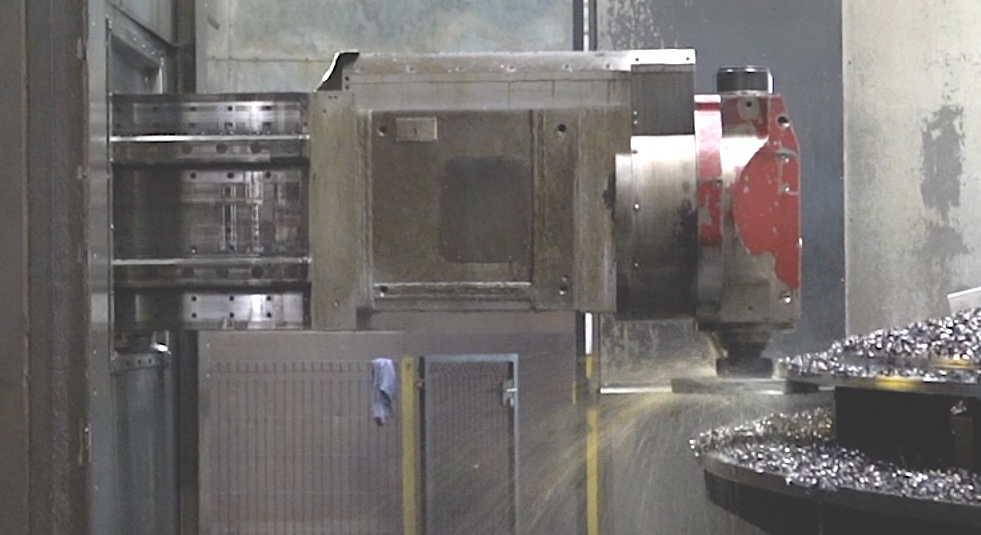

Universal Micro positioning head UHAmi 30 kW.
Right Angle head 60 kW.
Hand Wheel HR 520, M&H Probe.
X= 8.900 mm.
Y= 7.300 mm.
Z, Ram= 1.500 mm.
W, Spindle= 1.000 mm.
Rotary Table 3.000 x 4.000 mm, 80 Ton.
