COLGAR PROG 215 TR 12, 2008
Technical Specifications
| X Table travel | 4.000 mm |
|---|---|
| Y Headstock vertical travel | 3.000 mm |
| Z, Column in spindle direction | 2.000 mm |
| W, spindle stroke | 900 mm |
| Spindle diameter | 150 mm |
| Spindle diameter | ISO 50 |
| Spindle speed | 4 - 3.000 rpm |
| Spindle motor, 2 steps, ZF | 41/56 kW |
| Rotary Table size | 1.800 x 2.300 mm |
| Table load | 15 ton |
| C-axes | 360 000° |
Gallery
Machine Details
HEIDENHEIN Itnc 530.
ATC 60,
X= 4.000 mm.
Y= 3.000 mm.
W, Tower= 2.000 mm.
Z, Spindle= 900 mm.

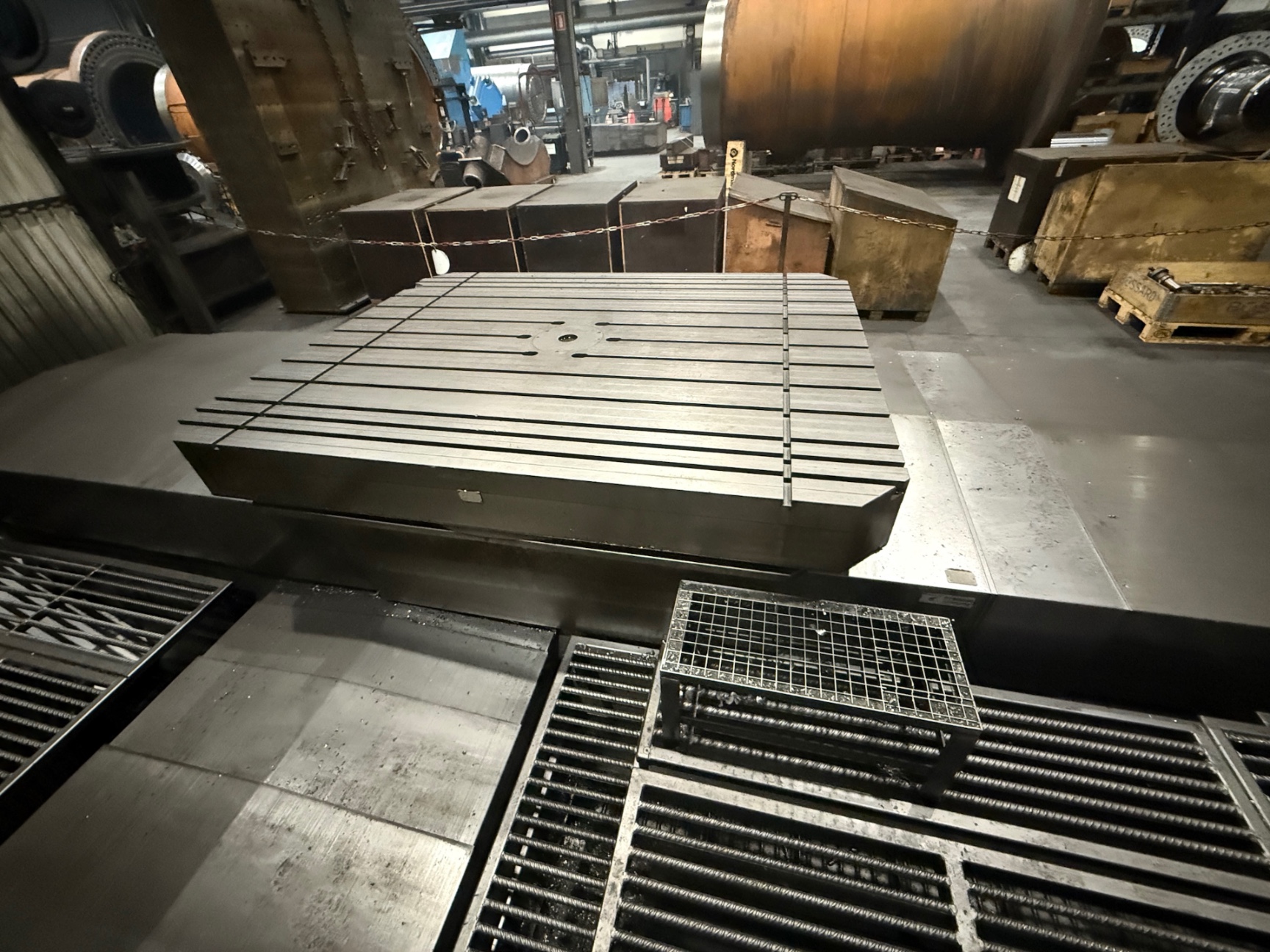

Rotary Table 1.800 x 2.300 mm, 15 Ton.
